0. CCNA Exam Questions

  1. MC will test which summaruzation will best summarize 3 routes at the same time. Ans = Route Summization to cover multi routes
  2. MC will provide you with multiple routes and ask you corresponding masks can cover all these routes (i.e. /8, /16, /24 …)

  3. MC can also ask you to bunch/ summarize 4 routes into 3 routes, grouping 2

  4. You will be tested on configuring BGP
  5. You will be tested on identifying BGP numbers

  6. There is practical for ACL, which is to filter unwanted traffic

  7. Some good techniques… if you see $ in the cli, then there’s more info in the summary!!

  8. Please also note… ACL can be applied to interfaces… as well as VLAN!

  9. You will be tested Named Access List praticals

  10. You will be tested Dynamic NAT pratical

  11. K9 in an image means it has encrption capabilties and can be ssh into.

10. Dynamic Roututing

10.9 EIGRP = Enhanced Interior Gateway Routing Protocol (Dynamic)

  • Intro:
    • EIGRP = Cicso proprietry dynamic routing protocol
    • Default AD for EIGRP is 90, refer to this AD-List

10.9.1 EIGRP AD and Metric (= Distance) & AS

  • EIGRP uses composite metric (Erog, EIGRP Metric = Bandwith + Delay)
  • Let’s revist some important conecepts between EIGRP vs OSPF, also refer to this AD-list
FeatureEIGRPOSPF
MetricComposite metric (bandwidth + delay)Math formula: (100M/x) + (100M/y)
Cisco only / ProprietaryYESNO
Default AD Value90110
  • AS = Autonomous Number, determined by network admin. Same AS numbers allow devices to communicate with each other.

10.9.2 Configuring EIGRP in Cisco IOS

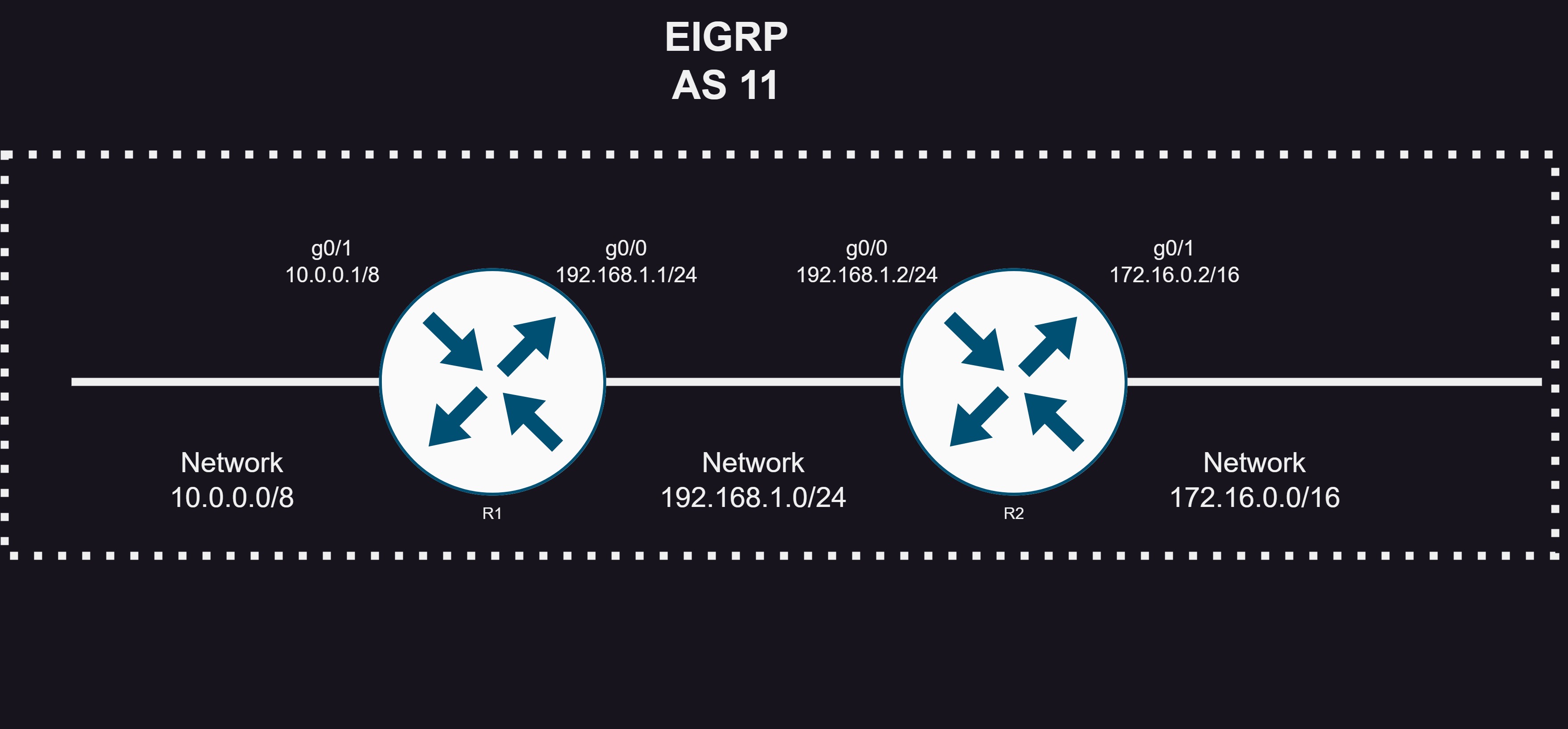

  • Topology:
  • Step 1: Setup R1
    •   en
  conf t

  int g0/1
  ip address 10.0.0.1 255.0.0.0
  no shut

  int g0/0
  ip address 192.168.1.1 255.255.255.0
  no shut

  end
  • Step 2: Setup R2
    •   en
  conf t

  int g0/1
  ip address 172.16.0.2 255.255.0.0
  no shut

  int g0/0
  ip address 192.168.1.2 255.255.255.0
  no shut

  end
  • Step 3: Set EIGRP R1 via router eigrp 11. Recall the syntax is router eigrp <Autonomous system / AS >
    •   conf t
  router eigrp 11
  network 192.168.1.0 0.0.0.255
  network 10.0.0.0 0.255.255.255
  end
    • Couple of things we noticed:
      • Recall: Wildcard masks bits 1 means cannot change and 0 means we can change into any number!
      • IP 192.168.1.x for g0/0 to participate in EIGRP
      • Also setting up 10.0.0.0 network to propogate in EIGRP
  • Step 4: Set EIGRP R2 via router eigrp 11
    •   conf t
  router eigrp 11
  network 192.168.1.0 0.0.0.255
  network 172.16.0.0 0.0.255.255
  end
  • Step 5: Verify R1 status with sh ip route. Dynamic Routing will be denoted as D.
    •   Codes:  L - local, C - connected, s - static, R - RIP, M - mobile, B - BGP
          D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
          N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
          E1 - OSPF external type 1, E2 - OSPF external type 2
          i - IS-IS, su - IS-IS summary, L1 - IS-IS level 1, L2 - IS-IS level 2
          ia - IS-IS inter area, * - candidate default, U - per-user static route
          o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
          a - application route
          + - replicated route, % - next hop override, p - overrides from pfR

  Gateway of last resort is not set
          10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
  C           10.0.0.0/8 is directly connected, GigabitEthernet0/1
  L           10.0.0.0/32 is directly connected, GigabitEthernet0/1
  D       172.16.0.0/16 [90/3072] via 192.168.1.2, 00:02:06, GigabitEthernet0/0
          192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
  C           192.168.1.0/24 is directly connected, GigabitEthernet0/0
  L           192.168.1.1/32 is directly connected, GigabitEthernet0/0

    • Notice: D = Dynamic Routing as EIGRP. AD is 90, Metric Value is 3072

    • ping 172.16.0.2 Will also work as we try to ping R2’s back network

10.10 Route Summarization and Auto Summarization

10.10.1 Route Summarization

  • Intro:
    • Aims to use one/few routes to cover multiple routes
    • 4 Routes:
      • 192.168.15.16/30 = (11000000.10101000.00001111.00010000/30)
      • 192.168.15.21/30 = (11000000.10101000.00001111.00010101/30)
      • 192.168.15.23/30 = (11000000.10101000.00001111.00010111/30)
      • 192.168.15.27/30 = (11000000.10101000.00001111.00011011/30)
    • After summarization:
      • 192.168.15.16/28 = (11000000.10101000.00001111.00010000/28) = (11000000.10101000.00001111.00010000/ 255.255.255.240)
    • Process of summarization:
      • Step 1: Turn all pre-summarized routes into binaries
      • Step 2: Sort them into host and network part (i.e. Those that have matching 0, 1 and those that have completely different 0, 1)
        • Since The common network bits among these IP addresses are 11000000.10101000.00001111.0001. This is a /28 network. One /28 network covers all 4 routes !
        • Since classful network type is A (due to >192) so the mask is default to be /24 then we add /4 for flexiblity
      • Step 3: Convert back to decimal. 192.168.15.16 with /28 mask.
      • Step 4: Figuring out the partition
        • For a /28 subnet, there are 16 IP addresses (2^(32-28) = 16), but 2 addresses are reserved for network and broadcast addresses.
        • Network address: 192.168.15.16
        • Broadcast address: 192.168.15.31
        • Usable IP range: 192.168.15.17 to 192.168.15.30
  • Side note:
    • Performing summarization on AWS cloud has a limit of summarizing 100 routes since the max prefix is 100 routes.

10.10.2 Auto Summarization in EIGRP

  • Recall the classful A (/8), B (/16), C (/24) network

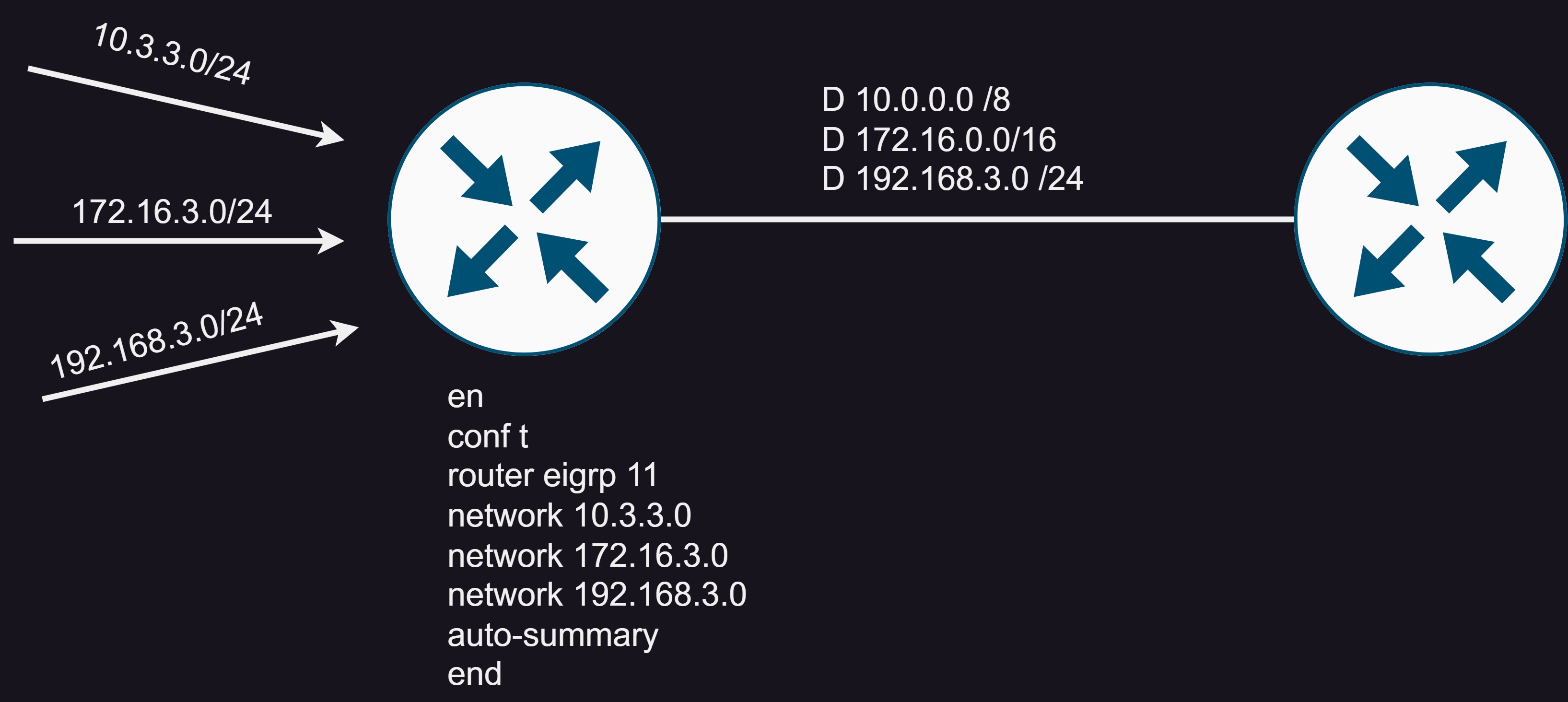

  • auto-summary = to bunch up multiple network

10.11 EIGRP FD, RD/AD, Successor, Feasible Successor

  • Background:
    • Numbers here are EIGRP Metrics
    • R3 gets the same network from R1 and R2
  • Let’s talk about a few terminologies:

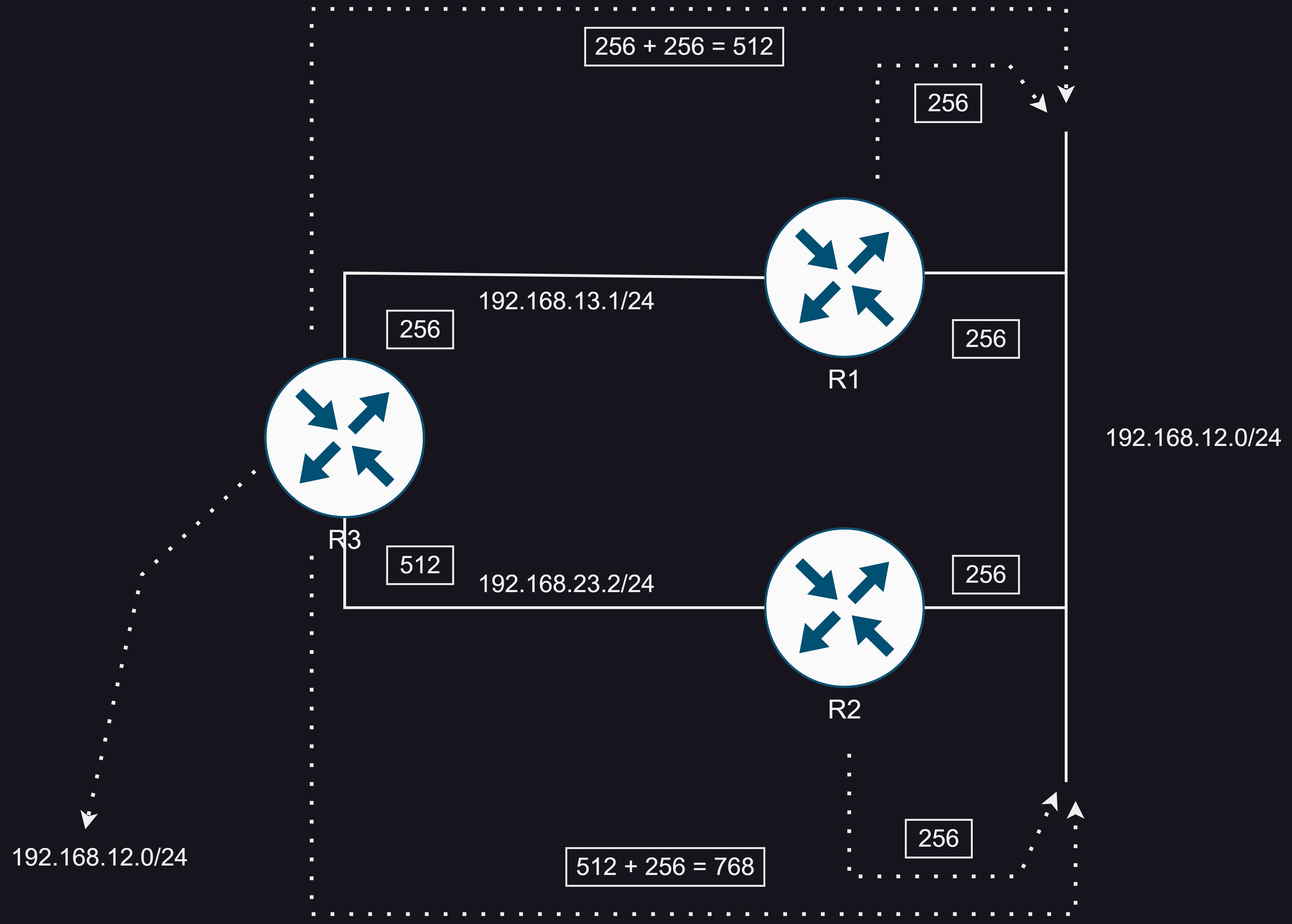

    • 1 - Path Metric (PM): Cost (i.e. EIGRP Metric) to jump to backend network
      • For example:
        • Upper road: Next hop 192.168.13.1, PM is 256 + 256 = 512 (Wins, the lower the better)
        • Lower road: Next hop 192.168.23.2, PM is 512 + 256 = 768
    • 2 - Feasible Distance (FD): smallest Path Metric, hence it was the upper road
    • 3 - Advertised or Reported Distance (AD or RD): The cost of hopping over to the next neighbor (aka distance for R2 to backend network or R3 to backend network)
      • For example:
        • R2 next hop = 256
        • R3 next hop = 256
    • 4 - Feasible Successor (FS): It’s kinda like a backup tbh
      • Rule of being an FS : AD/FD must be < FD, if yes then it’s an FS
      • Note: We can have more than 1 FS
    • 5 - Successor
      • Rule of being a successor: Lowest Path Metric (aka FD)!
      • Example:
        • Hence, 192.168.13.1 is the successor since it is the FD
  • How do we verify these PM, FD, AD/RD, FS, S… we can check with sh ip eigrp topology + sh ip route.
    • sh ip eigrp topology
      • The summary will be:
      •   EIGRP-IPv4 Topology Table for AS(123)/ID(192.168.23.3)
  Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
         r - reply Status, s - sia status

  P   192.168.23.0/24, 1 successors, FD is 512
      via Connected, GigabitEthernet0/3
  P   192.168.12.0/24, 1 successors, FD is 512
      via 192.168.13.1 (512/256), GigabitEthernet0/2
      via 192.168.23.2 (768/256), GigabitEthernet0/3
  .
  .
  .
    • Meanwhile sh ip route will get you this
    • The summary will be:
    •   Codes:  L - local, C - connected, s - static, R - RIP, M - mobile, B - BGP
          D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
          N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
          E1 - OSPF external type 1, E2 - OSPF external type 2
          i - IS-IS, su - IS-IS summary, L1 - IS-IS level 1, L2 - IS-IS level 2
          ia - IS-IS inter area, * - candidate default, U - per-user static route
          o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
          a - application route
          + - replicated route, % - next hop override, p - overrides from PfR

  D   192.168.12.0/24 [90/512] via 192.168.13.1, 00:22:38, GigabitEthernet0/2
      192.168.13.0/24 is variably subnetted 2 subnets, 2 masks
  C       192.168.13.0/24 is directly connected, GigabitEthernet0/2
  L        192.168.13.3/32 is directly connected, GigabitEthernet0/2
      192.168.23.0/24 is variably subnetted, 2 subnets, 2 masks
  C       192.168.23.0/24 is directly connected, GigabitEthernet0/3
  L       192.168.23.0/24 is directly connected, GigabitEthernet0/3
  • variance command will reveal the route with he larger metric in the routing table
    • Note again: only the smallest AD can enter the routing table
    • Punch in these commands:
    • This commands means to show route that has metric smaller than (FD * 2 = 1024) will be shown
    • Since 768 is smaller than 1024, but bigger than 512, hence it shows up now but not before!
        router eigrp 123
  variance 2
  end
    • Time to verify with sh ip route. You will see [768] now !
    •   Codes:  L - local, C - connected, s - static, R - RIP, M - mobile, B - BGP
          D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
          N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
          E1 - OSPF external type 1, E2 - OSPF external type 2
          i - IS-IS, su - IS-IS summary, L1 - IS-IS level 1, L2 - IS-IS level 2
          ia - IS-IS inter area, * - candidate default, U - per-user static route
          o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
          a - application route
          + - replicated route, % - next hop override, p - overrides from PfR

  D   192.168.12.0/24 [90/768] via 192.168.23.2, 00:22:38, GigabitEthernet0/2
                      [90/512] via 192.168.13.1, 00:22:38, GigabitEthernet0/2
      192.168.13.0/24 is variably subnetted 2 subnets, 2 masks
  C       192.168.13.0/24 is directly connected, GigabitEthernet0/2
  L        192.168.13.3/32 is directly connected, GigabitEthernet0/2
      192.168.23.0/24 is variably subnetted, 2 subnets, 2 masks
  C       192.168.23.0/24 is directly connected, GigabitEthernet0/3
  L       192.168.23.0/24 is directly connected, GigabitEthernet0/3

10.12 BGP = Border Gateway Protocol

  • Background:
    • BGP is a routing protocol used for inter-domain routing within orgs/ ISPs.
    • Usually each orgs/ ISP has a unqiue Autonoumous System (AS) for number of identification
    • Hence, BGP allows routing different AS’s, also known as Exterior Gateway Protocol (EGP)
    • But OSPF, EIGRP are considered as Interior Gateway Protocol(IGP)
    • Gist:
      • IGP = Intra-AS = Within the same AS
      • EGP = Inter-AS = Routing between diff AS
  • Common AS in HK
    • HSBN = AS 4515

10.13 Basic configs of BGP

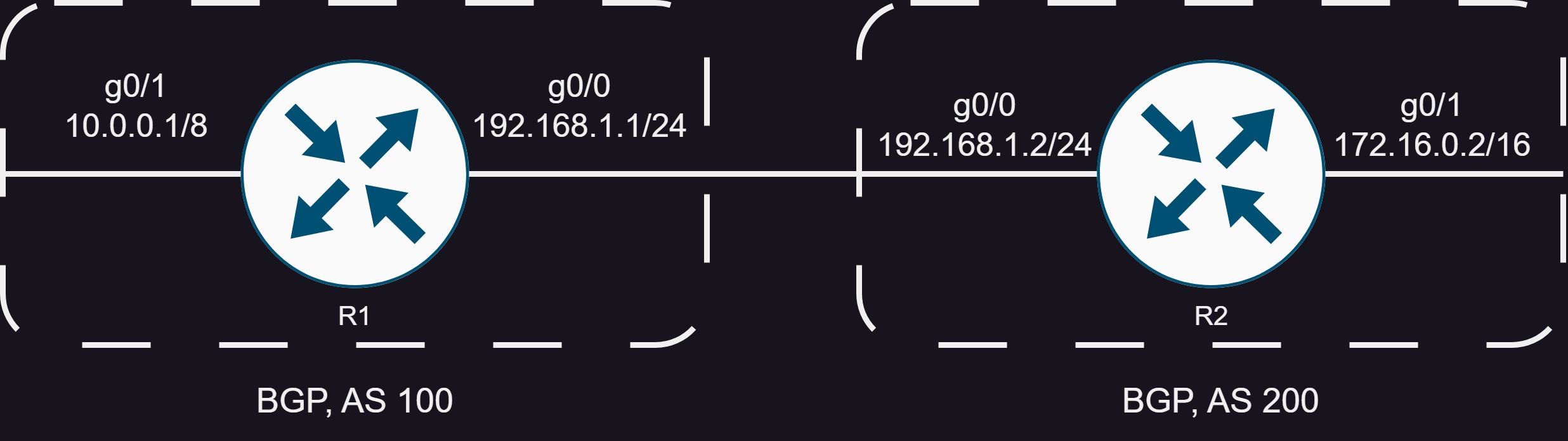

  • Topology:
  • Setup R1
    •   en
  conf t
  hostname Router1

  int g0/1
  ip address 10.0.0.1 255.0.0.0
  no shut

  int g0/0
  ip address 192.168.1.1 255.255.255.0
  no shut

  end
  • Setup R2
    •   en
  conf t
  hostname Router1

  int g0/0
  ip address 192.168.1.2 255.255.255.0
  no shut

  int g0/1
  ip address 172.16.0.2 255.255.0.0
  no shut

  end
  • Setting up R1 for BGP. Turning on bgp with router bgp 100.
    •   conf t
  router bgp 100
  neighbor 192.168.1.2 remote-as 200
  network 10.0.0.0 mask 255.0.0.0
    • Break down:
      • router bgp 100 = startup BGP + setup router in AS 100
      • nei 192.168.1.2 remote-as 200 = configure next hop (R2) as a neighbor with AS number of 200.
      • network 10.0.0.0 mask 255.0.0.0 = Configure BGP announcing 10.0.0.0/8 as neighbor/peer. This network is from R1 (own self).
  • Setting up R2 for BGP as well
    •   conf t
  router bgp 200
  neighbor 192.168.1.1 remote-as 100
  network 176.16.0.0 mask 255.255.0.0
    • Break down:
      • router bgp 100 = startup BGP + setup router in AS 200
      • nei 192.168.1.2 remote-as 200 = configure next hop (R1) as a neighbor with AS number of 100.
      • network 10.0.0.0 mask 255.0.0.0 = Configure BGP announcing 176.16.0.0/16 as neighbor/peer for propagation. This network is from R2 (own self).
  • Verify with sh ip route, you can also ping 172.16.0.2 (ping the real IP)
    • B here means BGP btw
    •   Codes:  L - local, C - connected, s - static, R - RIP, M - mobile, B - BGP
          D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
          N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
          E1 - OSPF external type 1, E2 - OSPF external type 2
          i - IS-IS, su - IS-IS summary, L1 - IS-IS level 1, L2 - IS-IS level 2
          ia - IS-IS inter area, * - candidate default, U - per-user static route
          o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
          a - application route
          + - replicated route, % - next hop override, p - overrides from PfR

      10.0.0.0/8 is variably subnetted 2 subnets, 2 masks
  C       10.0.0.0/8 is directly connected, GigabitEthernet0/1
  L       10.0.0.1/8 is directly connected, GigabitEthernet0/1
  B   172.16.0.0/16 [20/0] via 192.168.1.2, 00:00:17
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
  C       192.168.1.0/24 is directly connected, GigabitEthernet0/0
  L       192.168.1.1/24 is directly connected, GigabitEthernet0/0
    • We will study what the 0 means in [20/0] in CCNP

11. Access Control Lists (ACL)

  • Background:
    • By deafult, router routes data to other devices
    • To enhance routing security and reducing routing network traffic = USE A FILTER
    • Gist: ACL = filtering unwanted traffic

11.1 Rules fo ACL

  • Command: sh access list 1 to check what ACL rules are already present
  • Important facts:
    • 1 ACL has 1 or more ACL rules
    • 1 ACL rule = a condition + an action
    • Something like this … topology
    • The rule conditions contain parameters, e.g. IP address, TCP/UDP port number…, if the parameters condition is matched -> action is executed. Packet is denied/ allowed :D
  • Let’s look at AL logic gate in action !
    • topology:

11.2 IP Standed, extended ACL !

  • 2 different ACL/ Access List:
    • (IP) Standard Access List = Simpler, fewer parameters (usually only Source IP address + IP wildcard mask)
    • (IP) Extended Access List = Complex, more params
      • params can include…
        • TCP/IP protocol type (TCP, UDP, ICMP, IP, … etc)
        • Source IP address and source IP wildcard mask
        • Source port number for TCP/UDP
        • Destination IP address & destination IP wildcard mask
        • Destination port number
        • etc…

11.3 Access List numbering

  • Background:
    • The numbering can help determine the type, kind of access list
    • Typically speaking:
      • ACL number 1-99 = (IP) Standard Access List
      • ACL number 100-199 = (IP) Extended Access List

11.4 ACL for inbound + outbound data

  • Uses of ACL = filter data flowing into/out of a specific direction
  • Terminology:
    • In-bound data = data flowing from network into router
    • Out-bound data = data flowing from router out to network

11.5 Examples of configuring IP access lists

  • Applying it in real life, goal is to block/allow traffic into R1 !

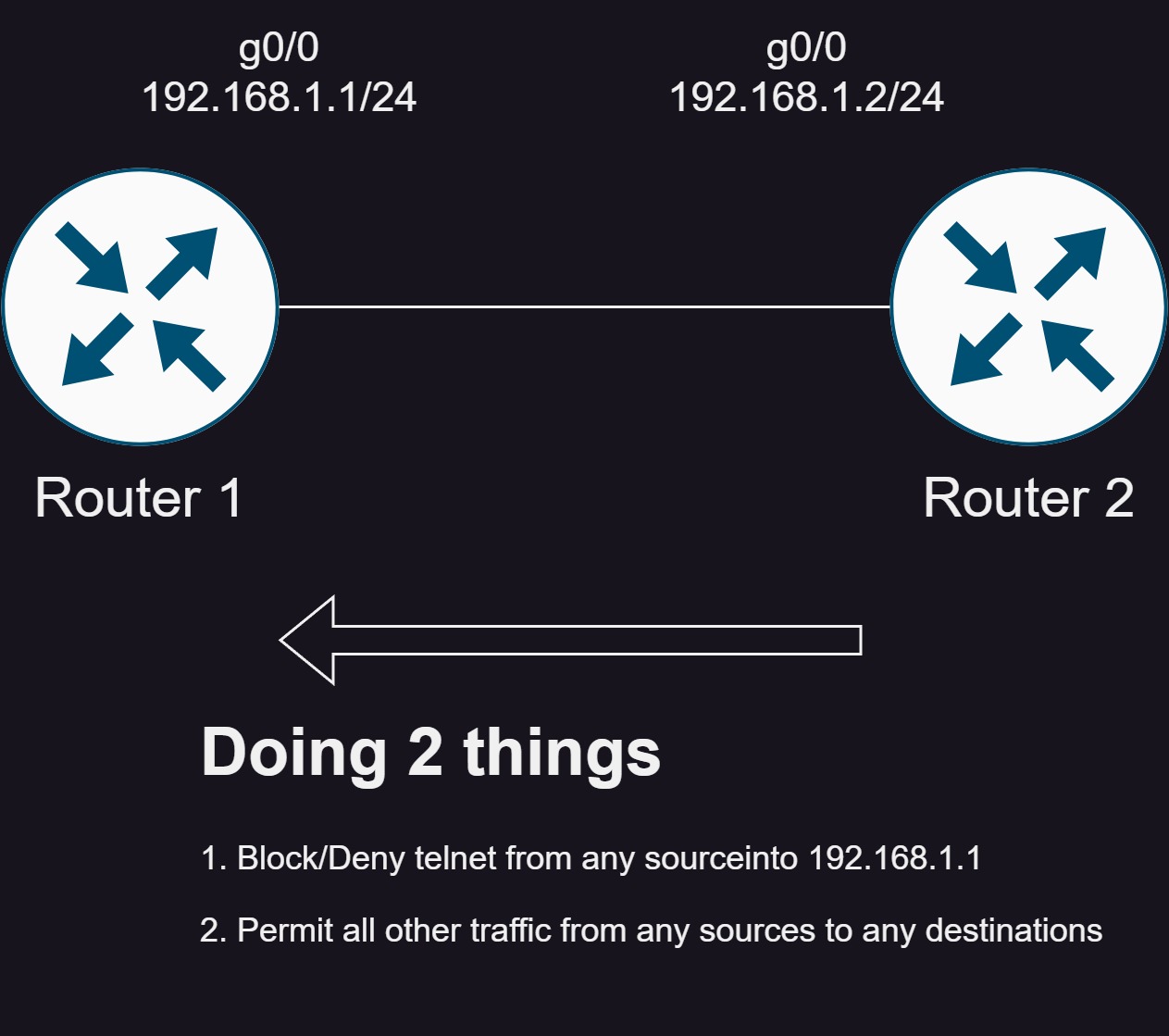

  • Let’s look at the topology:

  • Step 1: R1 setup
    •   en
  conf t
  hostname R1

  int g0/0
  ip address 192.168.1.1 255.255.255.0
  no shut
  • Step 2: R2 setup
    •   en
  conf t
  hostname R2

  int g0/0
  ip address 192.168.1.2 255.255.255.0
  no shut
  • Step 3: R1 setting up the first rule - to setup the deny thing
    •   conf t
  access-list 100 deny tcp 0.0.0.0 255.255.255.255 192.168.1.1 0.0.0.0 eq 23
  end
    • Let’s break it down
      • access-list 100 deny tcp 0.0.0.0 255.255.255.255 192.168.1.1 0.0.0.0 eq 23, let’s break it down further
        • access-list 100 = if ACL number is larger than 100, then it’s IP Extended Access list
        • deny tcp = denying TCP protocol (it’s important to note telnet = tcp port 23)
        • 0.0.0.0 255.255.255.255 = The source IP address and source IP wildcard mask = meaning ALL ADDRESSESSSS
        • 192.168.1.1 0.0.0.0 = The destination IP address and the destination IP wildcard mask = targeting only 192.168.1.1
        • eq 23 = This tag placed after the destination means destination port number 23 (port number for telnet server)

  • Step 4: R1 setting up the second rule, allowing anything else!

    •   en
  conf t
  access-list 100 permit ip any any
    • Let’s break it down
      • ip means ALL TCP/IP protocol
      • any = is the same as 0.0.0.0 255.255.255.255 = any is the source IP address and source IP wildcard mask
      • any = is the same as 0.0.0.0 255.255.255.255 = any is the destination IP address and destination IP wildcard mask
  • Step 5: Now the 2 rules are configured, time to activate them!
    •   conf t
  int g0/0

  ip access-group 100 in

  end
    • ip access-group 100 in means ACL number 100 on int g0/0 will filter inbound data (works for VLAN too!)
    • BTW in means implementing the access group !
    • Note: ACL number is also found in L3 headers!
  • Step 6: Attempt to send a telnet from R2 to R1
    • In R2 try telnet 192.168.1.1, it should fail as expected since the application of the access list 100 to intg0/0 is to filter inbound data
  • Step 7: Let’s check what rules and verify the 2 rules in R1, sh access-list
    • The summary should contain the 2 ACL rules we have set. Note the (1 match) means someone tried to attack this rule before
    •   Extended IP Access list 100
      10 deny tcp any host 192.168.1.1 eq telnet (1 match)
      20 permit ip any any
    • IMPORTANT note: The order of these rules are VERY IMPORTANT, top one gets filtered first !! For example, if we switch the order, everything is allowed and nothing is blocked… GG
  • Step 8: We can also verify the ACL rules that is imposed on the interface directly through sh ip int g0/0
    • Summary table:
      • Note: Outbound has NO filter, Inbound is ACL and has 2 rules !
          GigabitEthernet0/0 is up, line protocol is up
      Internet address is 192.168.1.1/24
      Broadcast address is 255.255.255.255
      Address determined by setup command
      MTU is 1500 bytes
      Helper address is not set
      Directed broadcast forwarding is disabled
      Outgoing access list is not set
      Inbound access list is 100
      Proxy ARP is enabled
  • Step 9: ping 192.168.1.1, ping is not telnet so it is allowed through ACL list

11.6 Second Example for Data traffic filtering

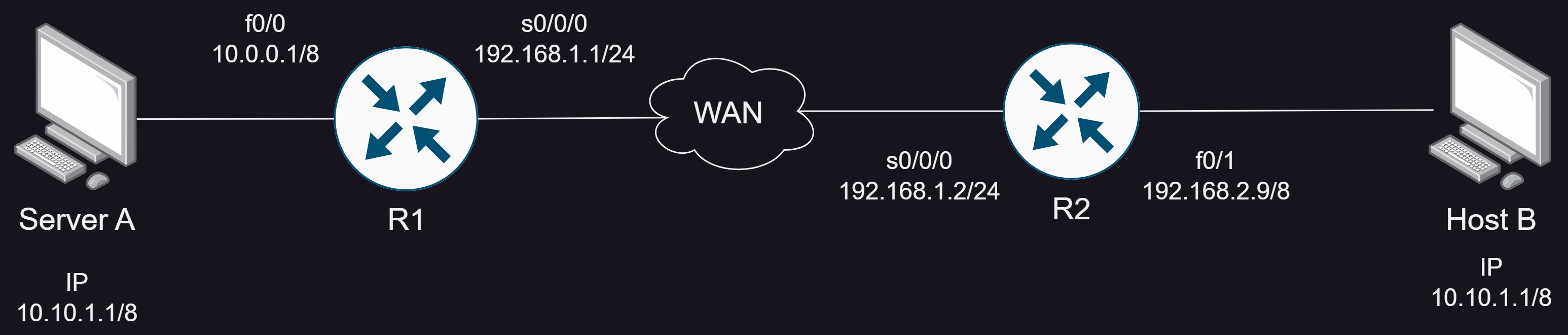

  • Topology:

  • Background of this topology:
    • We wish to filter going into Server A from host in the subnet of 192.168.2.0/26. We will setup 2 rules:
      • Rule 1: No ping !
      • Rule 2: Allowing other protocols through
  • Step 1: access-list 100 deny icmp 192.168.2.0 0.0.0.63 10.10.1.1 0.0.0.0 echo
    • Note! eq is NOT Required before echo
    • Note! You can replace the last part ... 10.10.1.1 0.0.0.0 ... into ... host 0.0.0.0 ...
    • Recall subnet mask vs wilcard mask
      • subnet mask: /26 -> 11111111.11111111.11111111.11000000
      • wildcard mask: inverted /26 (Hence 32-26 so it’s /6 bits) 00000000.00000000.00000000.00111111 = 0.0.0.63
  • Step 2: access-list 100 permit ip any any = permitting other protocol!

11.7 Named Access List

  • Background: Besides creating a numbered access list (100, 200…) you can create a NAMED one to see the ACL better :D
  • extended dropTelnet = the new ACL group name
      en
  conf t

  ip access-list extended dropTelnet

  deny tcp any any eq 23
  permit ip any any

  intg0/0
  ip access-group dropTelnet in
  end

12. NAT = Network Address Translation

12.1 Public IP Address and Private IP Address

  • Background:
    • For a computer host to communicate with other host, a public IP address is needed (of course, this is not free)
  • Private IP Address ranges:
    • 10.0.0.0 - 10.255.255.255 (all IP that starts with 10.x.x.x are private IP address)
    • 172.16.0.0 - 172.31.255.255
    • 192.168.0.0 - 192.168.255.255 = Our usual private IP address
    • Note: Private IP can be used without internet!
  • IANA = Internet Assigned Numbers Authority
    • In charge of Public IP and supplying BGP AS numbers!
    • Does NOT supply and apply IP address
    • Routers on the internet has no responsiblity to route data packets for private IP address
  • Topology:

12.2 Dynamic NAT with overload

  • Background:
    • Dynamic NAT overload is good at bunching up
    • Via public network, allowing a single IP to be shared by multiple devices (this involves port number translation). This is why Dynamic NAT is also known as Port Address Translation(PAT)

12.3 Configuration of Dynamic NAT with overloadding

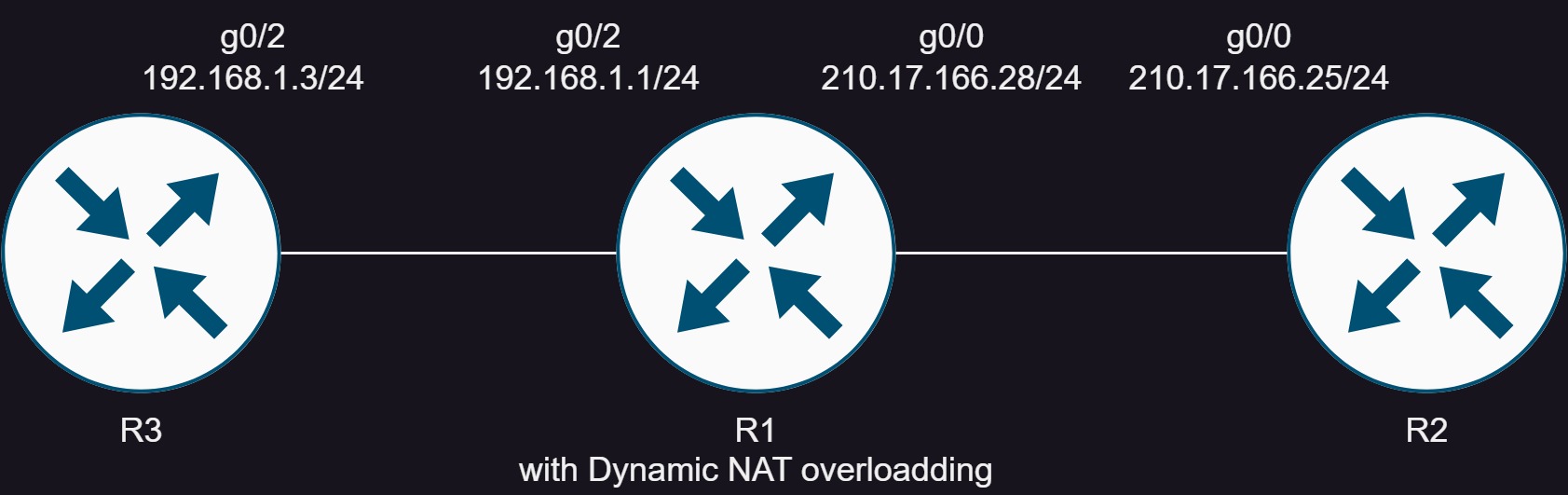

  • Topology:

  • Setup walkthrough:

    • Step 1: Properly setup R1
      •   en
  conf t
  hostname R1

  int g0/2
  ip address 192.168.1.1 255.255.255.0
  no shut

  int g0/0
  ip address 210.17.166.28 255.255.255.0
  no shut

  end
    • Step 2: Properly setup R2
      •   en
  conf t
  hostname R2

  int g0/0
  ip address 210.17.166.25 255.255.255.0
  no shut
  end
    • Step 3: Properly setup R3
      • Note: Currently no NAT configs, R3 with private IP can only access 192.168.1.1 but not the internet!
      • Currently: default gateway is pointing to 192.168.1.1
      •   en
  conf t
  hostname R3

  int g0/2
  ip address 192.168.1.3 255.255.255.0
  no shut

  exit

  ip route 0.0.0.0 0.0.0.0 192.168.1.1

  end
    • Step 4: trying ping-ing in R3
    •   ping 192.168.1.1
  !!!!!
  Success rate is 100 percent

  ping 210.17.166.25
  .....
  Success rate is 0 percent
    • Step 5: R1 activate Dynamic NAT on the int, first entering int g0/0 ip nat outside = connecting to outside network (i.e. internet)
    • Step 6: R1 activate Dynamic NAT on the int, first enter int g0/2 ip nat inside = connecting to inside network (i.e. private network where NAT clients are located)
    • Step 7: Do this on R1
      •   access-list 100 permit ip 192.168.1.1 0.0.0.255 any
    • Step 8: Define which public IP can be included in NAT, The NAT pool name = pool of public ip addresses ip nat pool public-ip-pool 210.17.166.28 210.17.166.28 netmask 255.255.255.0
      • pool start ip: 210.17.166.28 = the starting IP address of the address pool
      • pool end IP public: 210.17.166.28 = This is also the ending IP address of the address pool
      • Only 1 IP can play NAT
      • This range of public IPs (aka the range here although only has 1 IP) can be shared by multiple hosts in private networks for NAT translations
      • 255.255.255.0 = This is the subnet mask assigned by ISP

    • Step 9: Verify with do sh run | inc ip nat

    • Step 10: Tell NAT router to do NAT translatoin for private address in access list 100 using public address from address prool public-ip-pool
      •   ip nat inside source list 100 pool public-ip-pool overload
      • Breakdown:
        • Alerts the NAT Router
        • The origin of the packet = “inside network” + “source address from access list 100”
        • NAT router should …
          • source address -> public address (from address pool’s “public-ip-pool”) via dunamic NAT overload
    • NOTE: Dynamic NAT = PAT

    • NOTE: Non-overloading is out-syllbus

    • Step 11a: Verify from R3 with ping 210.17.166.25
      • Meaning behind it… NAT Router translates R3’s private address to public address (aka 210.17.166.28) and that’s why we have communication from and back in R2
      • NOTE: we can also do echo reply now
    • Step 11b: Verify with sh ip nat translations
      • Summary: Please ignore Outside local and Outside global since they are out syll
      •   Pro Inside global       Inside local        Outside local       Outisde global
  210.17.166.28:6         192.168.1.3:6       i don't care.       i don't care.
      • We have port number 6 here, if we have tcp/udp then it would be a different port number
      • Use of sh ip nat translations = view and verify the NAT translation performed by NAT router. All active NAT translaion will be shown
      • “Iniside Global” = Real IP = Public IP is registered address
      • “Inside local” = fake IP = inside host address (i.e. private IP address)
    • Remark:
      • The int (i.e. g0/0) that is facing outside network can be specified too like : ip nat instide sourcfe list 100 int g0/0 overload. This is much simplier.
        • Since the IP address used by g0/0 will be treated as an “inside global” address = public IP address by NAT, which is exactly what NAT pool neede4d
        • This command is useful in that g0/0 is using a public IP, where it’s typically dynamically given from the ISP directly !
        • Dynamic IP = If you have 1, 2 shall follow, it will die until it expires from the routing table!
      • Rather that the usual pool method which is: ip nat source list 100 pool public-ip pool overload found here
      • Uses of Private IP:
        • Preventing device from directly reaching the outside internet by conserving IPv4 public address!

12.4 Configuring Static NAT

  • Clarifications and setting the record straight
    • Dynamic NAT with overload:
      • = Public IP address + port number is mapped dynamically when NAT client starts/initiates an internet connection by sending data out
      • Initiation begins at NAT Client, connecting to Internet
    • Static NAT:
      • = Static NAT is need for connecting to web server on private network
      • Initiation begins at hosts in the Internet, connecting to NAT client / web server on private network
      • Static NAT offers permanent entry and mapping to the NAT translation table, where a public IP address port number is statically mapped to a NAT client

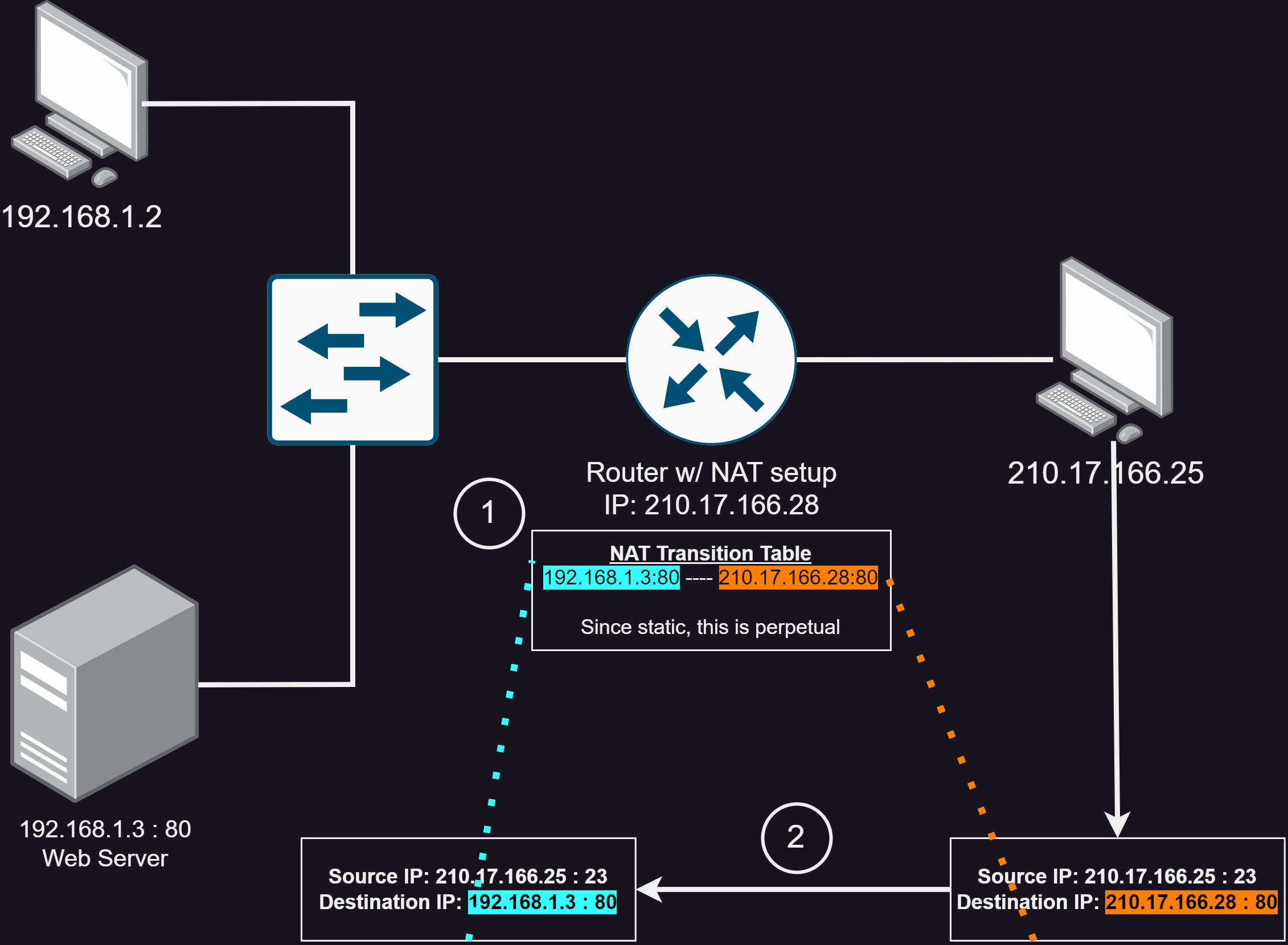

  • Diagram for Static NAT
    • Topology:
  • Steps to setup static NAT…
    • Step 1: Use global config command ip nat inside source static tcp 192.168.1.3:80 210.17.166.28:80 (Note: 192.168.1.3 is a web server in a private network)
      • Router 1. REALLY UNSURE WHY It’s de and not ip nat inside
          config t
  ip nat inside source static tcp 192.168.1.3:80 210.17.166.28:80
      • Step 2: Santiy check on R1. tr means translations btw
          sh ip nat tr

  Pro Inside global           Inside local
  tcp 210.17.166.28:80        192.168.1.3:80

13 SSH : Secure SHell

13.1 Intro

  • Telnet data is non-encrptyed
  • SSH has telnet features, but this time with encrption (espically in SSHv2), connecting to CLI of any routers/ switches is better

  • Remark: If the image has k9 as a prefix, it supports ssh and has encrption capabilities.

  • In companies and softwares like Wireshark… they follow the tcp stream

  • Demo on ssh between routers
    • Topology:
    • Step 1: Steup R1 and R2 accordingly
      • Setup R1 first
          en
  conf t
  hostname R1
  int g0/0
  ip address 192.168.1.1 255.255.255.0
  no shut
  end
      • Then setup R2
      •   en
  conf t
  hostname R1
  int g0/0
  ip address 192.168.1.2 255.255.255.0
  no shut
  end
    • Step 2: R1 setup rsa encrption. systematic.com is for setting the domain name. rsa is an encryption algo
      •   conf t
  ip domain-name systematic.com
  crypto key generate rsa
  1024
  end
      • Afer crypto key generate rsa = ```text Chose the size of the key modulus in the range of 360 to 4096 for your General Purpose Keys. Chooing a key modulus greater than 512 may take a few minues How many bits in the modulus [512]: 1024 % Generating 1024 bit RSA keys, keys will be non-exportable… [OK] (elapsed time was 0 seconds)

      ```

13.2 Understanding the relation between rsa and ssh

  • Before Router can be an ssh server, host names + domain names must be configured first for the rsa keys to be generated (must for ssh servers)
  • SSH defaults to using 512 bit keys, you’re free to choose from 360 bits to 2048 bits. Longer bits = more processing power
  • If you don’t config hostnames and domain names on your Router before generating rsa keys…
    • Consequence:
        % Please define a hostname other than Router
  or
  % Please define a domain-name firsst
